Question 1

How compact is the DJI SDR Transmission 2?

Accepted Answer

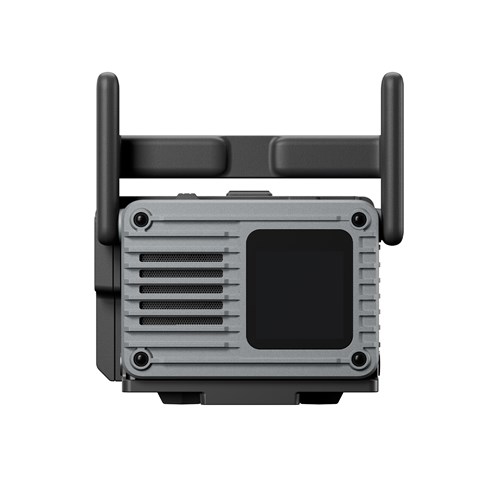

The transceiver measures 76 × 61 × 25mm, excluding the antennas and Cold Shoe Adapter, and weighs approximately 136g including the antennas. Its small footprint takes up less space when mounted alongside other camera or gimbal accessories, and its low weight adds little to the overall rig. This makes it especially practical for compact camera setups where mounting space and weight must be minimal.

Question 2

Which Osmo cameras can connect directly to the DJI SDR Transmission 2?

Accepted Answer

The DJI SDR Transmission 2 supports Osmo Action 6 and Osmo Pocket series models from Osmo Pocket 4 onwards. These devices connect to the transceiver via USB-C for monitoring and power. This provides a compact way to add a remote feed from smaller cameras used for sports, reality productions or positions where a larger camera rig cannot fit. Compatibility is limited to the specified Osmo models.

Question 3

Does the DJI SDR Transmission 2 support SDI?

Accepted Answer

Yes, but SDI is provided through the separately sold DJI SDR Transmission 2 Expansion Plate, not the main transceiver. The Expansion Plate adds SDI input/output alongside HDMI and additional USB-C connections. It also supports SDI metadata transmission from mainstream cinema cameras, including ARRI and RED. The plate weighs around 105g, so include it when planning the complete rig.

Question 4

Which DJI Ronin series products support the DJI SDR Transmission 2?

Accepted Answer

The DJI SDR Transmission 2 supports DJI RS 5, RS 4 Pro, RS 4, RS 3 Pro, Ronin 2 and Master Wheels. Ronin 2 and Master Wheels require the separately sold DJI SDR Transmission 2 Gimbal Control Cable (USB-C to 4-pin), while RS 4, RS 4 Pro and RS 3 Pro require the separately sold USB-C to CAN version. When connecting the transceiver to an RS series stabiliser, remote camera control also requires a Multi-Camera Control Cable between the gimbal and camera.

Question 5

What temperatures can DJI SDR Transmission 2 operate in?

Accepted Answer

The transceiver has a specified operating temperature range of -10°C to 40°C. The separately available Expansion Plate and Transceiver Cage carry the same operating temperature specification. This gives crews a clear temperature range to work within when preparing the system for outdoor or location production.
