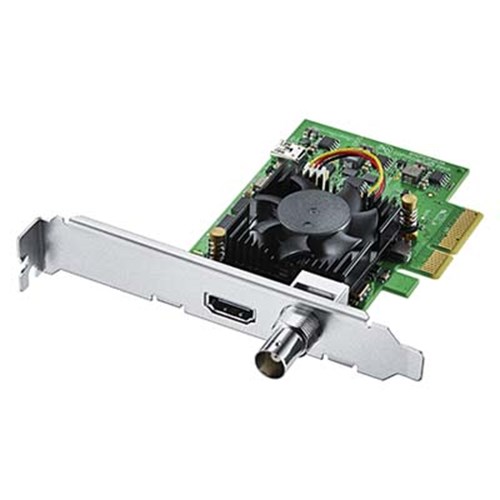

Blackmagic DeckLink Mini Recorder 4K
Blackmagic DeckLink Mini Recorder 4K lets you record both consumer and professional videos for broadcast or backup. It can support SD, HD, and 4K footage with SDI and HDMI inputs that can automatically detect and switch between all video formats. With wide software support & real-time colour space conversion, it can record all formats on your computer.
Blackmagic Decklink Mini Recorder 4K Key Features:
FAQs:
What are the operating environmental specifications?
The mini recorder has specific operating environmental specifications and works well at an optimum temperature of 5 to 40-degree Celsius. The storage temperature should be from 0 to 45-degree Celsius and 0% to 90% non-condensing humidity conditions.
Which inputs are available in the recorder?
There are 6G-SDI and HDMI 2.0a video input connectors and input audio formats are SDI (8/10/12-bit) and HDMI (8/10/12-bit). The embedded audio inputs for SDI are 16 channels and for HDMI are 8 channels.
Which all codecs are supported by the recorder?
The Blackmagic mini recorder supports both consumer and professional video codecs including H.264, AVC-Intra, Apple ProRes, DV-PAL and many more, allowing full-resolution input.
How much does it weigh and what is the power consumption?
The recorder is lightweight with a weight of 90 grams and has a power consumption of 8 W.
Which connectors are used for computer connection?
The Blackmagic mini recorder uses three types of connectors to connect it to the computer. These connection types depend on the computer model and include Thunderbolt, USB 3.0, or PCL.
Product Specification
| Channels | SDI: 16-Channel, HDMI: 8-Channel |
| Dimensions | H120 x W530 x D540mm |
| Included Accessories | 1x DeckLink Mini Recorder 4K, 1x Low profile slot bracket |
| Inputs | SD/HD/3G/6G-SDI Input |
| Phantom Power | No |
| Recording Formats | 10-bit SD/HD/Ultra HD |
| Size | H120 x W530 x D540mm |
| Type | Audio Recorder |
| Weight | 90g |
| Manufacturers Link | Blackmagic |
